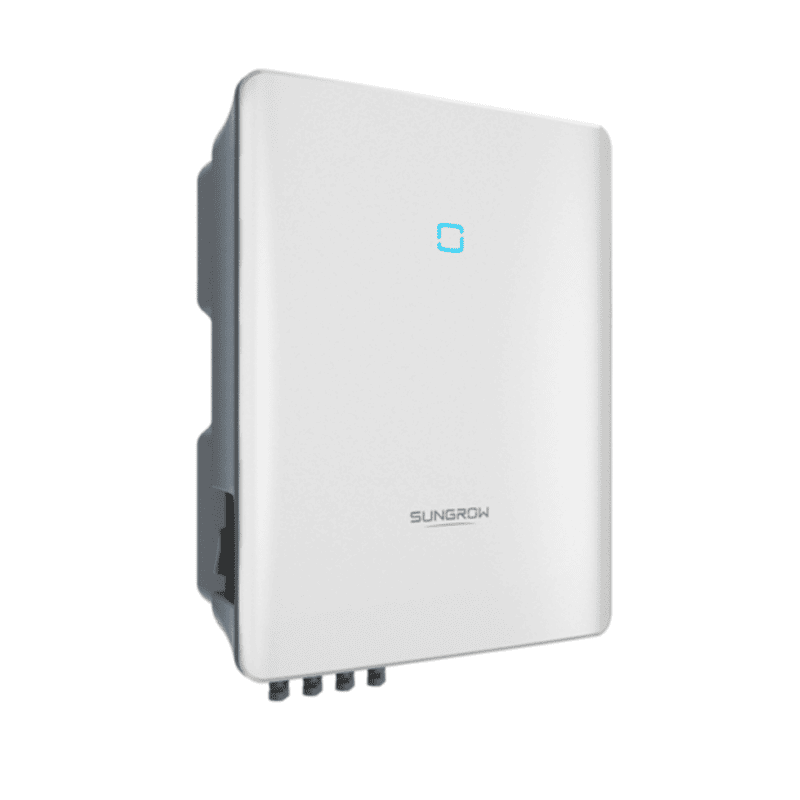

SUNGROW SG6.0RT-P2
High-efficiency transformerless inverter for residential and small commercial systems
Dual MPPT, wide voltage range, smart monitoring, and robust safety protection.
The advantages:
Maximum efficiency up to 98.4 % for superior energy yield
Dual MPPT design ensures optimal generation in varied conditions
AFCI & SPD Type II protection for enhanced safety
PID recovery and ground fault monitoring for long-term reliability
Natural convection cooling, low noise, and IP65-rated enclosure
Supports Wi-Fi / Ethernet / RS485 communication for smart monitoring via iSolarCloud
Compact and lightweight design (approx. 15.5 kg) for easy installation
Wide operating temperature range (–25 °C to +60 °C)
10-year standard warranty, extendable on request
Product Details
The Sungrow SG6.0RT is a high-efficiency, transformerless 3-phase grid-connected inverter designed for residential and small commercial PV systems. It ensures maximum energy yield with dual MPPT, wide input voltage range, and intelligent monitoring. Built to last, it offers strong protection and seamless communication.
Key Features & Specifications:
Rated AC Output Power: 6 kW
Max. DC Input Power: 9 kW
MPPT Operating Voltage Range: 160 V – 1000 V
Max. DC Voltage: 1100 V
Max. Input Current per MPPT: 16 A
Number of MPPTs / Strings per MPPT: 2 / 1
Max. Efficiency: 98.4 %
European Efficiency: 98.0 %
AC Output Voltage / Frequency: 230/400 V, 50 Hz
THD (Total Harmonic Distortion): < 3 %
Protection Functions: AFCI (Arc Fault Circuit Interrupter), DC & AC Type II SPD, Ground Fault, PID Recovery, Anti-islanding protection
Communication: RS485, Ethernet, Wi-Fi (via WiNet-S module)
Cooling Method: Natural Convection
Enclosure Rating: IP65, corrosion resistance C5
Operating Temperature Range: -25 °C to +60 °C (derating above 45 °C)
Dimensions / Weight: approx. 480 × 370 × 195 mm / 15.5 kg
Warranty: 10 Years (extendable)
Reliable, quiet, and smart – the SG6.0RT ensures stable grid compliance, low maintenance, and long-term solar performance monitoring through the Sungrow iSolarCloud platform.
