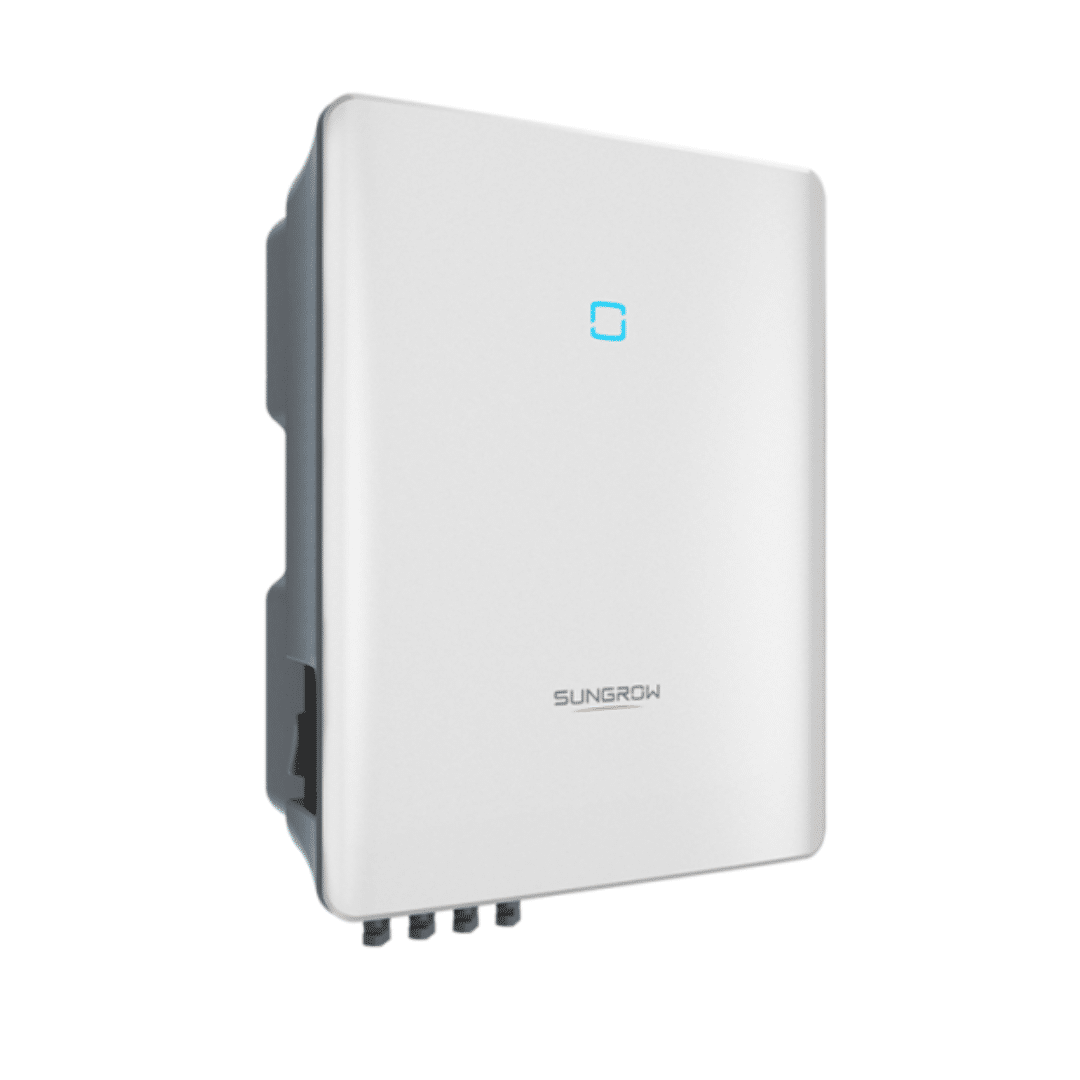

SUNGROW SG8.0RT-P2
High-performance inverter for residential and commercial solar plants
Dual MPPT, smart protection, and intelligent communication for stable grid operation.
The advantages:
High efficiency up to 98.5 % for maximum energy conversion
Dual MPPT input with wide voltage range (160 V – 1000 V)
Integrated AFCI, DC & AC Type II SPD, and anti-islanding protection
PID recovery and residual current monitoring for system longevity
Smart communication via RS485, Ethernet, and Wi-Fi (WiNet-S module)
Natural convection cooling and IP65 weatherproof design suitable for all environments
Compact size (480 × 370 × 195 mm) and lightweight (approx. 15.5 kg)
Reliable performance from –25 °C to +60 °C, C5 corrosion resistance
10-year warranty, extendable
Product Details
The Sungrow SG8.0RT is a next-generation 8 kW 3-phase inverter engineered for medium-size residential and commercial solar systems. It provides exceptional efficiency, reliability, and grid stability with advanced protection features and intelligent communication options.
Key Features & Specifications:
Rated AC Output Power: 8 kW
Max. DC Input Power: 12 kW
MPPT Operating Voltage Range: 160 V – 1000 V
Max. DC Voltage: 1100 V
Max. Input Current per MPPT: 16 A
Number of MPPTs / Strings per MPPT: 2 / 1
Max. Efficiency: 98.5 %
European Efficiency: 98.1 %
AC Output Voltage / Frequency: 230/400 V, 50 Hz
THD (Total Harmonic Distortion): < 3 %
Protection Functions: AFCI, DC & AC Type II SPD, Ground Fault, PID Recovery, Anti-islanding protection
Communication: RS485, Ethernet, Wi-Fi (via WiNet-S module)
Cooling Method: Natural Convection
Enclosure Rating: IP65, corrosion resistance C5
Operating Temperature Range: -25 °C to +60 °C (derating above 45 °C)
Dimensions / Weight: approx. 480 × 370 × 195 mm / 15.5 kg
Warranty: 10 Years (extendable)
The SG8.0RT combines top-tier efficiency, low noise, and integrated smart monitoring to deliver sustainable performance and long-term durability for all-weather solar operations.
