Finder

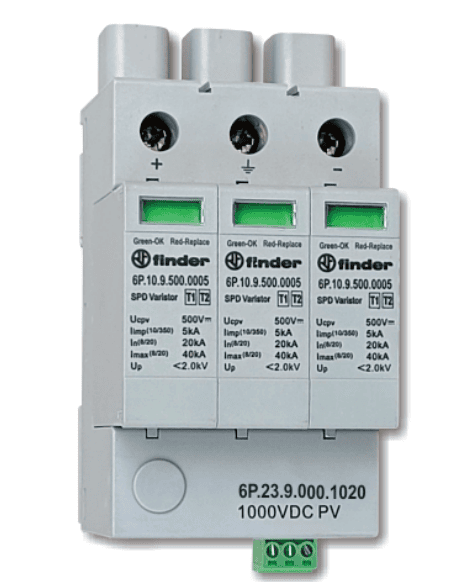

Finder 1000 V DC SPD-Model 6P.23.9.000.1020
- Type-2 Surge Protection Device designed specifically for 1000V DC photovoltaic systems
- Provides strong protection against transient overvoltages caused by lightning or switching surges
- Features high-performance MOV technology for fast response and reliable operation
- Nominal discharge capacity suited for solar DC applications with stable energy absorption
- Maximum continuous operating voltage (Uc) rated for 1020V DC ensuring safe long-term operation
- Includes visual status indicator for quick identification of module health
- Built with replaceable protection modules for easy maintenance
- Comes with remote signalling facility for monitoring from control/SCADA systems
- DIN-rail mountable design suitable for DCDBs, solar combiner boxes and industrial panels
- Compact, durable construction ideal for rooftop, commercial, and utility-scale solar plants
Non-returnable
Out of stock
Rs.1,540.00
Share:
Product Details
✅ Technical Specifications
| Parameter | Details |
|---|---|
| Model | 6P.23.9.000.1020 |
| Type | Type-2 DC Surge Protection Device |
| Rated Voltage | 1000V DC |
| Max Continuous Voltage (Uc) | 1020V DC |
| Nominal Discharge Current (In) | 20 kA (typical for this model) |
| Maximum Discharge Current (Imax) | 40 kA |
| Polarity | Suitable for DC systems (usually 2P for each pole pair) |
| Protection Technology | Metal Oxide Varistor (MOV) |
| Indicator | Visual status window (Healthy / Replace) |
| Remote Contact | Yes (NO/NC) |
| Mounting | DIN Rail 35mm |
| Operating Temperature | –40°C to +80°C |
| Application | Solar PV, battery systems, DC distribution, DCDB, combiner boxes |
| Replacement | Plug-in replaceable module |
