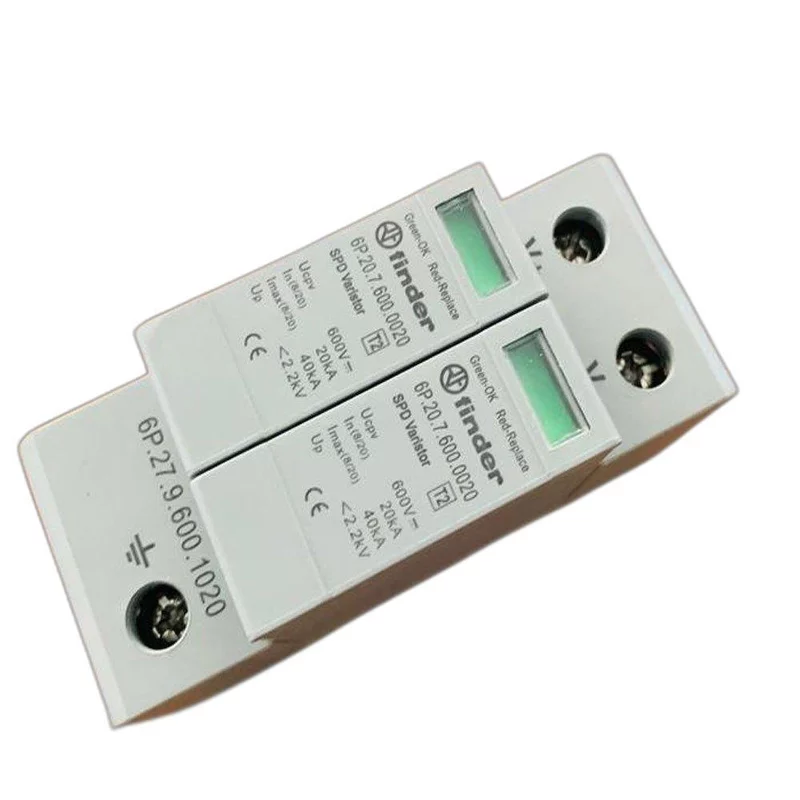

Finder 600 V DC Surge Protection Device – Model 6P.20.7.600.0020
- Surge Protection Device for DC side in PV / solar systems
- Rated for 600 V DC continuous operating voltage
- Type-2 SPD — protects against switching transients and induced overvoltages
- Built with MOV varistors for fast and effective surge suppression
- Visual flag / indicator to show varistor health (“OK / Replace”)
- Remote signalling contact (SPDT) to integrate with monitoring systems
- Replaceable varistor modules for ease of maintenance
- Compact design, DIN-rail mountable (35 mm) for clean panel installation
- Suitable for DC combiner boxes, string inverters, and solar DC distribution boards
- Durable operation over a wide ambient temperature range
Non-returnable
Out of stock
Rs.800.00
Rs.1,090.00
Share:
Product Details
Specifications
Parameter Value Type Type 2 DC SPD Operating Voltage (DC) 600 V DC Max Continuous Operating Voltage (Uc) 600 V DC Nominal Discharge Current (In) 20 kA (typical) Max Discharge Current (Imax) 40 kA (typical) Protection Mode DC positive/negative to earth Modules Pluggable Status Indication Visual window (Green/Red) Disconnector Integrated thermal disconnection Mounting DIN Rail 35 mm Housing Self-extinguishing thermoplastic Operating Temperature –40°C to +80°C Protection Class IP20 (installed) Application Solar PV, BESS, DC Panels
| Parameter | Value |
|---|---|
| Type | Type 2 DC SPD |
| Operating Voltage (DC) | 600 V DC |
| Max Continuous Operating Voltage (Uc) | 600 V DC |
| Nominal Discharge Current (In) | 20 kA (typical) |
| Max Discharge Current (Imax) | 40 kA (typical) |
| Protection Mode | DC positive/negative to earth |
| Modules | Pluggable |
| Status Indication | Visual window (Green/Red) |
| Disconnector | Integrated thermal disconnection |
| Mounting | DIN Rail 35 mm |
| Housing | Self-extinguishing thermoplastic |
| Operating Temperature | –40°C to +80°C |
| Protection Class | IP20 (installed) |
| Application | Solar PV, BESS, DC Panels |
