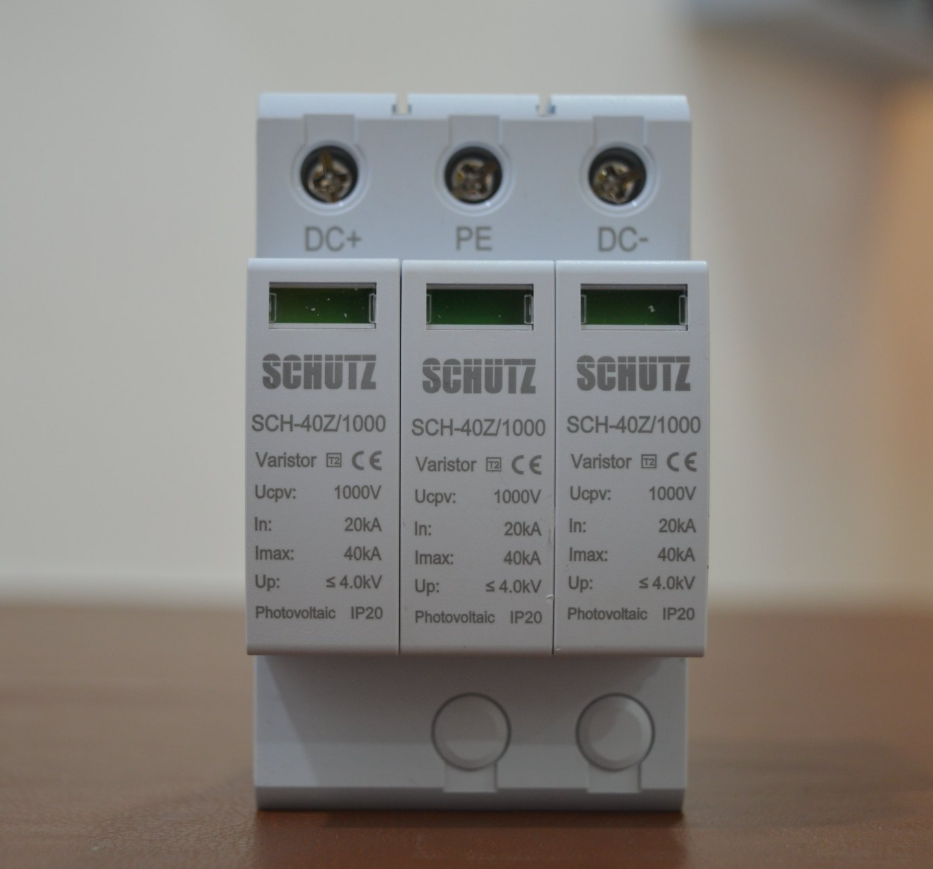

Schutz 1000 V DC Single Phase SPD
- Single-phase DC Surge Protection Device designed for 1000 V DC systems
- Protects photovoltaic arrays, DC distribution panels, battery banks and solar installations
- High performance MOV-based surge protection with rapid response to transient over-voltages
- Maximum continuous operating DC voltage up to 1000 V (or nominal for the model)
- Compact DIN-rail mountable design for easy installation in control/combiner boxes
- Plug-in replaceable protection module for simplified maintenance
- Visual status indicator (healthy / replace) for easy monitoring
- Option for remote signalling contact to integrate into system monitoring
- Suitable for industrial, commercial and utility scale solar DC applications
Non-returnable
Out of stock
Rs.1,300.00
Rs.1,999.00
Share:
Product Details
Technical Specifications
| Parameter | Value |
|---|---|
| Model | Schutz 1000 V DC Single Phase SPD |
| Type | Type-2 (DC) Surge Protection Device |
| Rated Voltage | 1000 V DC |
| Maximum Continuous Operating Voltage (Uc) | 1000 V DC |
| Nominal Discharge Current (In) | ~20 kA (typical) |
| Maximum Discharge Current (Imax) | ~40 kA (typical) |
| Poles | Single-phase (1P + N) |
| Protection Mode | DC (Positive/Negative to Earth) |
| Module Format | Plug-in cartridge style |
| Status Indicator | Visual window (Green/Red) |
| Remote Signalling | Available (NO/NC contact) |
| Mounting | DIN-rail 35 mm |
| Operating Temperature Range | –40°C to +80°C (typical) |
| Protection Degree | IP20 when installed |
| Enclosure Material | Flame-retardant thermoplastic |
| Application | Solar PV, DCDB, battery energy storage systems |
