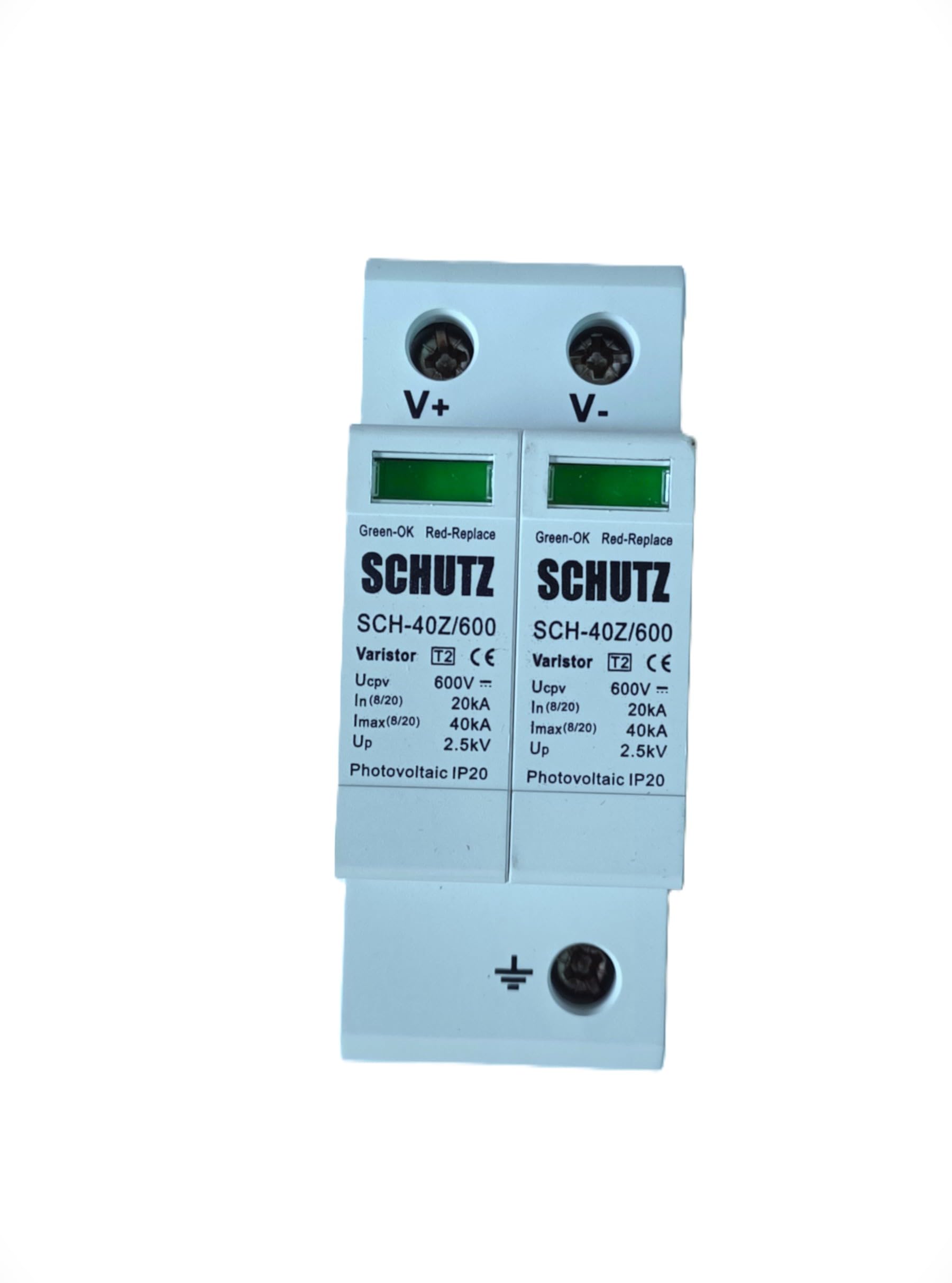

Schutz 600V DC Surge Protection Device
- Type 2 Surge Protection Device for 600V DC systems
- Protects solar arrays, DC panels and battery banks from transient over-voltages
- High-performance MOV technology for fast surge suppression
- DIN-rail mountable compact housing
- Plug-in, replaceable protection cartridge
- Built-in thermal disconnection for safe operation
- Visual status indicator (healthy / fault)
- Optional remote signalling contact (NO/NC)
- Resistant to lightning-induced and switching surges
- Suitable for industrial and commercial solar installations
Non-returnable
Out of stock
Rs.1,199.00
Rs.1,799.00
Share:
Product Details
Technical Specifications
| Parameter | Value |
|---|---|
| Model | Schutz 600V DC SPD |
| Type | Type 2 |
| Rated Voltage | 600 V DC |
| Max. Continuous Operating Voltage (Uc) | 600 V DC |
| Nominal Discharge Current (In) | 20 kA (typical) |
| Max Discharge Current (Imax) | 40 kA (typical) |
| Protection Mode | + / – to Earth |
| Response Time | ≤ 25 ns |
| Status Indication | Visual (Green / Red) |
| Remote Contact | Optional (NO / NC) |
| Mounting | DIN Rail 35 mm |
| Module Type | Plug-in cartridge |
| Enclosure | Flame-retardant thermoplastic |
| Protection Degree | IP20 (installed) |
| Operating Temperature | -40°C to +80°C |
| Application | Solar PV, DCDB, Battery storage, EV chargers |
